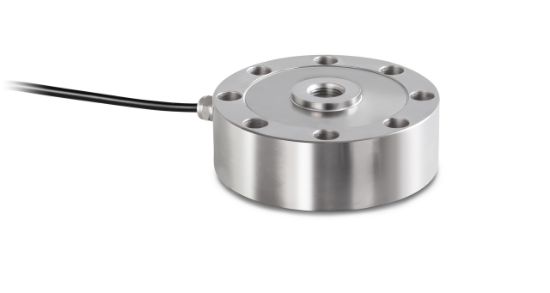

Nominal Load : 20 t / 200 kN
- High precision (comprehensive Error 0.05 % F.S.)
- Accuracy in accordance with OIML R60 C1
- RoHS compliant
- protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated
- Stainless steel
- Area of application: for weight, tensile and compressive force measurement
- Suitable for weight measurement as well as force and force test benches
- Force transmission via pressure piece or threaded hole
- Nominal sensitivity: 2 mV/V
- Pressure piece included with delivery
- Thread for pressure piece or other force application: up to 5000 kg M16×1.5, from 10000 kg M32×1.5
