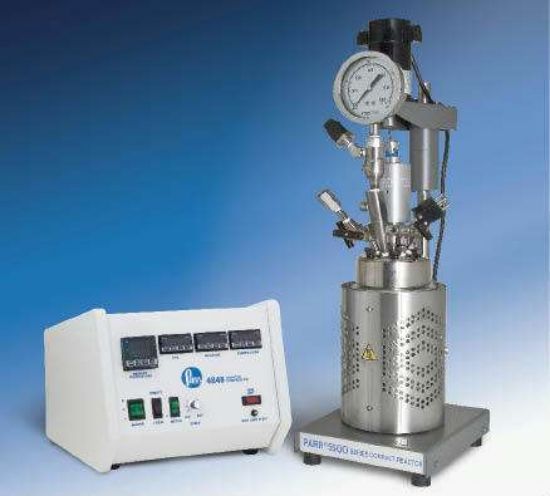

5500 Series High Pressure Compact Reactor with Following Specifications:
- 5521 model reactor with approximate volume of 300ml
- Material of construction stainless steel T316SS
- Maximum Pressure and Temperature 3000 psi @ 350C
- Moveable head, compact bench top, PTFE flat gasket stable upto 350C
- split ring closure (6cap screw for flat gasket)
- valve connection: 1/8" male NPT
- Stirrer motor: 1/17hp
- magnetic stirrer drive 2.5 inch/ibs (0.28Nm)
- Impeller: 4 blades 1(0.81")
- Gas inlet valve, gas release valve, liquid sampling valve, dip tube and thermocouple
- Heater power 700W
- Electrical supply: 230V, Max Load amps: 5
- 4848 PID Temperature Controller with ramp and soak programming
- Cooling coil: standard single loop
- ASME Certification
