- Test charging stations with Type 1 (J1772) or Tesla type connectors
- Simple on-screen instructions for easy operation
- Pass/Fail indication on all test results
- Auto control pilot with waveform analysis
- GFCI testing for 6 and 20 mA GFCI circuits
- Compatible with TruTest„¢ Data Management and Reporting software (included with PRO models)
- Includes Type 1 and Tesla-type connectors and TruTest software
- 2 year warranty
Perform a PE pre-test to ensure no dangerous voltage is present before installing EV charging stations. A user-friendly interface and comprehensive test functions ensure that all wiring and connections are done correctly. Use the analyzer for testing EV charging stations with Type 1 or Tesla type connectors. View easy-to-follow instructions with a Pass/Fail indication on all test results on a large color LCD. Conduct a ground fault circuit interrupter (GFCI) trip test to verify the functionality of the GFCI€”crucial for preventing electric shocks. One-button push provides auto control pilot with waveform analysis, essential for diagnosing communication issues between the EV and the charging station.
Easily collect and manage measurement data with TruTest„¢ Data Management and Reporting software (included with analyzers 17784-99 and 17785-00). The Windows®-compatible software allows you to manage and analyze data from multiple charging stations, providing detailed reports for maintenance, performance tracking, and regulatory compliance. Use the Bluetooth® connection to transfer data from the analyzer to your PC.

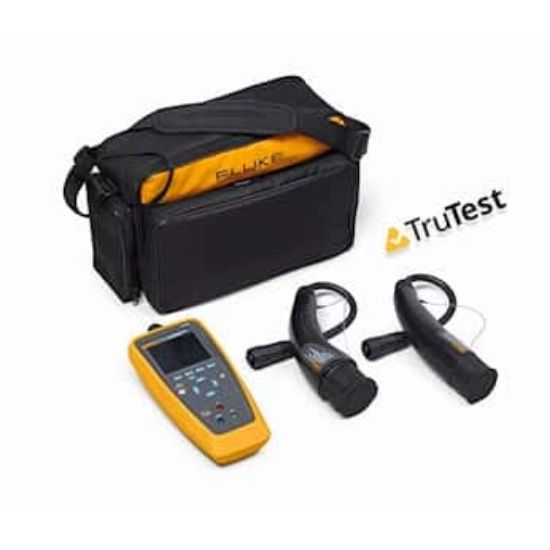

Includes: Type 1 connector, Tesla-type connector, TPAK magnetic hanger, soft carrying bag, batteries, and TruTest software license.
