Retrieve flow data and receive alarms via your GSM wireless service; GPRS compatible
This cellular modem module is designed to push Isco 2100 Series flow meter data to a remote Flowlink® database. It virtually eliminates the need for recurring site visits, time-consuming (and potentially dangerous) confined space entry, as well as costly installation of land lines.
The 2103Gi is compatible with user-subscribed GSM digital cell phone service (such as AT&T and T-Mobile). GSM subscription parameters are contained on a SIM card that you install in the modem. Service parameters – or provider – may be changed by simply replacing the SIM card.
The 2103Gi stacks together with up to three other Isco 2100 Series flow modules of your choice, giving you a compact, integrated system for open channel flow data collection and management.
Pushed-data capability
The 2103Gi can automatically send data via the Internet to a designated server running Isco Flowlink® Pro software, using economical GPRS packet-switched data transmission. The user-specified primary data transmission interval (from 5 minutes to 24 hours) can automatically change to a secondary interval when specific conditions occur at the monitoring site. An Oracle® or Microsoft® SQL database is required to use this feature. Contact the factory for additional information.
Standard Features
- Automatic alarm messaging to pagers or cell phones – with CSD service on a SIM card
- Communication coverage for any area with GSM cellular service
- Easy setup and change of service provider by simply installing a SIM card
- Resistance to lightning damage
- IP68 enclosure rating (NEMA 4X, 6P)
- Compatibility with Isco Flowlink® Data Management Software, allowing sophisticated analysis, editing, graphing, reporting, and archiving.
- Long battery life. Pre-set conditions automatically cause the modem to power up, but the user may program specific “on times” for communication, significantly extending battery life.
- When used in pushed data mode, the modem automatically powers down once transmission is complete (until next transmission begins).
Applications
- Remote data retrieval in sewer flow studies, I & I, CSO, cMOM
- Automatic alarm notification of overflow condition
Options and Accessories

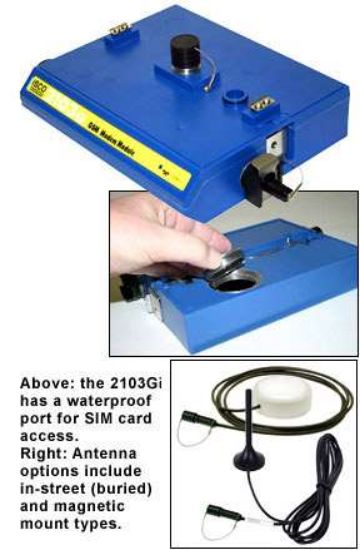

- Magnetic mount antenna (For elevated placement to extend range and avoid signal obstruction, e.g., where module is inside a steel enclosure or steel-framed building.)
- In-street (buried) antenna. (Potted antenna in PVC housing, designed to be buried in street for manhole sampling/monitoring applications.)
- Flowlink software
