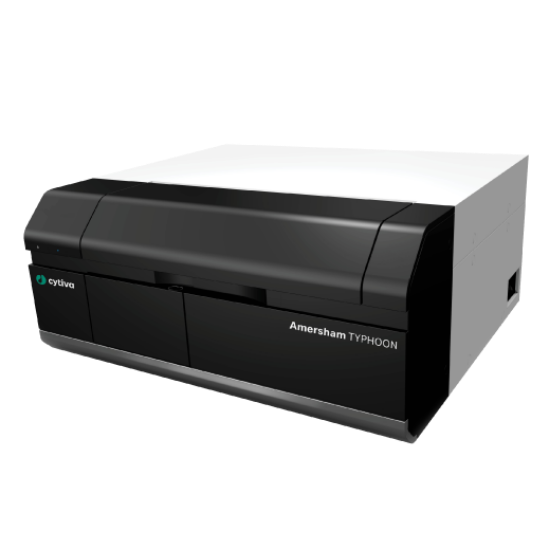

Amersham Typhoon NIR Plus Biomolecular Imager (29264463) is a high-performance laser scanner for sensitive and quantitative biomolecular imaging. This NIR Plus configuration supports near-infrared fluorescence, green fluorescence, densitometry with the required OD Plate, and chemiluminescence dark scan workflows, with a 40 × 46 cm scanning area and selectable pixel sizes down to 10 µm.
Key Features
- NIR Plus imaging configuration, supporting 2xNIR and green fluorescence for biomolecular imaging workflows
- Chemiluminescence dark scan capability, supporting applications where maximum chemiluminescence sensitivity is not required
- Densitometry support with OD Plate, enabling optical density workflows when the required accessory is used
- Three standard excitation wavelengths, using SHG532, LD685 and LD785 laser excitation
- Standard NIR Plus filter set, including Cy3 570BP20, IRshort 720BP20 and IRlong 825BP30 filters
- Large 40 × 46 cm scanning area, supporting high-throughput imaging of gels, blots and other compatible sample formats
- Selectable pixel sizes down to 10 µm, with 10, 25, 50, 100 and 200 µm options plus 1000 µm prescan
- Broad measurable dynamic range, specified at greater than 5 orders of magnitude with 16-bit image data
- Fluor Stage format, supplied for fluorescence imaging workflows on the NIR Plus model
- ImageQuant TL software licence included, with one licence provided with each Amersham Typhoon scanner model
Note: Optical densitometry requires the OD Plate accessory. Contact John Morris Group to confirm the current computer configuration recommended for this instrument.
Benefits
- Supports sensitive and quantitative imaging of proteins and other biomolecules in gels, blots and related sample formats.
- Enables multiplex fluorescence workflows using near-infrared and green fluorescence detection in a single platform.
- Helps laboratories compare multiple gels, blots or plates efficiently using the large scanning area.
- Provides flexible image acquisition through selectable pixel sizes, filter options and upgrade pathways.
- Supports research environments that require high-resolution imaging and a broad linear dynamic range.
- Provides an integrated analysis workflow through the included ImageQuant TL software licence.
Why Choose the Amersham Typhoon NIR Plus Biomolecular Imager (29264463)?
Amersham Typhoon NIR Plus Biomolecular Imager (29264463) is a versatile option for laboratories focused on NIR and green fluorescence imaging with high resolution and a large scan area. John Morris Group can support Australian laboratories with Cytiva Amersham imaging systems, accessories and related molecular imaging supplies.
