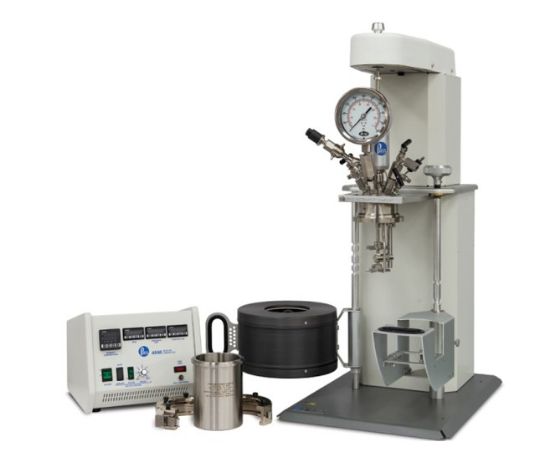

A) 300mL Fixed head reactor bench top style.
B) Vessel MAWP Rating: 1200 PSI at 300°C.
C) Head, cylinder, magnetic drive, and internal wetted parts (in direct contact with
process liquid) constructed Titanium Gr2
D) Vapor-containing external valves and fittings constructed of stainless steel.
E PTFE Flat Gasket stable up to 350C
F) Head to include:
a. Magnetic Drive, 16 in-lb made of Titanium Gr2 with stirrer shaft
b. Pressure gauge 0-600 psi
c. Gas release valve
d. Double valve assembly with inlet valve and sampling valve over dip tube.
e. Safety rupture disc
f. Thermocouple, Type J and cooling loop
G) Bench top stand with mantle heater, 230V
H) Variable speed motor, 1/8hp
I) 4848 Reactor Controller with the following specifications:
a. PID temperature control with ramp and soak programming
b. Manual speed adjustment knob, 0-600 rpm
c. 230V Electrical
J) ASME Certification
