Includes a factory calibration using 0.5 – 7.5 ppm and 0 – 200 ppm S-316 calibration standards for samples containing primarily petroleum hydrocarbons with minimal animal/plant oils; Includes Internal Battery, Auto Adapter, Set of Four 10mm Quartz Cuvette Cells, Dust Cover and Universal Power Supply.
Includes 2 Calibration Ranges for Water, Soil Calibration can be added for additional charge:
Water: 0.5, 1, 2.5, 5.0, and 7.5 mg/L
Water: 10, 25, 50, 100, 150, and 200 mg/L

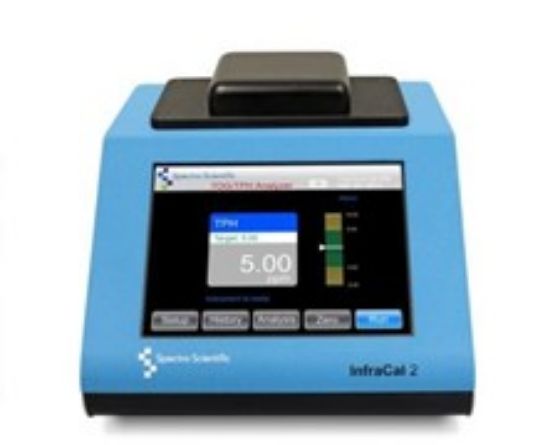

The InfraCal 2 TRANS-SP is recommended for measuring oil in water, TPH in soil or FOG in wastewater concentration levels using the traditional EPA methods 413.2 and 418.1 or ASTM method D7066-04 and Freon-113, hydrocarbon-free grade of perchloroethylene, AK-225, S-316 or other spectroscopic infrared transparent solvent as the extracting solvent. Since the extract is deposited into a 10 mm quartz cuvette cell with Teflon stopper, light end volatile components are retained for measurement. Accurate down to 0.1 ppm.
Specifications
- MDL Water: ;0.1ppm
- MDL Soil: 1ppm
- Solvent(s): Perchloroethylene, S-316, Freon-113
- Method Compares: EPA 1664, ISO 9377-2
- Method Complies: ASTM D7066, EPA 413.2, EPA 418.1
The fact that InfraCal Analyzers over 10 years old are still operating in the corrosive environment of an offshore oil rigs attests to their rugged, dependability. The analysis procedure takes less than 15 minutes and can be done by minimally trained personnel. They use the field proven infrared technology for measuring oil in water, oil content in drilling mud or drill cuttings, TPH (total petroleum hydrocarbons) in soil and FOG (fats, oil and grease) in wastewater.
