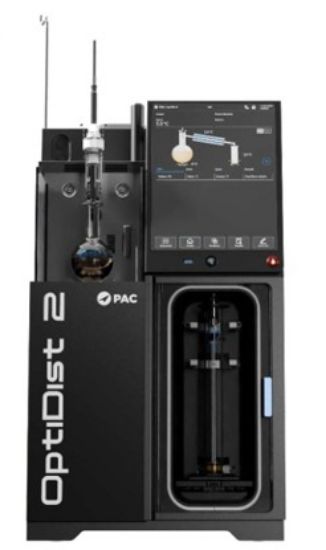

The new PAC OptiDist 2 atmospheric distillation instrument is a ground-up redesign, incorporating all the best features from the OptiDist and updating them for many years of optimal performance and reliability. The redesign centres around the new patent-pending solid-state thermosiphon cooling system, which achieves extremely fast, uniform, and efficient temperature control of the condenser. Combined with precise heater system control using the unique patented dual optimizer, distillation conditions are precisely monitored and controlled to achieve premium repeatability and precision of the measurement process.
Test Methods & Certifications
- Standard Test Methods ASTM D86 (group 1, 2, 3, 4), D1078, D850, IP195, IP123, DIN51751, EN ISO3405, JIS K2254, ISO918, D524, D4350
- Complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
- Meets the requirements of the European Directives concerning health, hygiene, and safety
- The standards applied are listed in the “CE Declaration of Conformity”
Key User Benefits
Outstanding Repeatability & Reproducibility
- Dual optimizer technology enables accurate real-time temperature control for consistent, repeatable results.
- Thermosiphon system provides highly efficient cooling for the condenser system, ensuring optimal performance.
Unbeatable Uptime & Reliability
- Thermosiphon primary condenser cooling system with no moving parts for long term reliability.
- Efficient thermosiphon system eliminates need for booster heater.
- Modular assembly construction allows for easy and quick maintenance, minimizing downtime and enhancing overall efficiency and productivity.
- Automatic heater lift for reliability and ease of use.
- Automatic heater chamber door for reliability and safety.
Unequaled Ease of Use
- Fully automated D86 distillation method with intuitive user feedback throughout.
- New user interface with capacitive touch screen display.
- Backwards compatible with OptiDist flasks and volume gauges.
- Highly visible status light to indicate instrument activity and test completion.
- Seamless printer connectivity via USB or network connection.
- Compatible with both IRIS and PACe for lab monitoring.
Enhanced Safety Assurance
- Automatic fire detection system compatible with CO2 or N2 extinguisher gases.
- VOC extractor system included as standard in all units.
- Automatic QR code recognition of correct heater plate installation for safety and method compliance.
- Automatic flask detection system for tracking and tracing flask usage. Enhances safety by predicting potential flask breakage and reduces the risk of errors and accidents
Optional Accessories : Must be ordered separately
- External printer
- Bar code reader
- Automatic dry point kit for 125 ml
- AUtomatic dry point kit for 200 ml
- Cruide Oil testing capacity
- CRM reference Materials.
