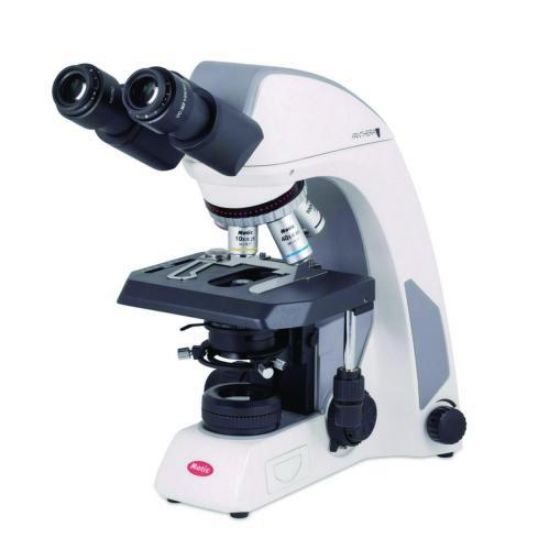

The MOTIC Panthera DL Binocular Head Microscope is a high-quality upright light microscope designed for education, research, and professional diagnostics. Equipped with advanced optics and digital features, it ensures precise imaging and versatile functionality.
Product Features
- Tube type: Siedentopf, 25º inclined and swiveling 360º
- Widefield oculars for spectacle wearers with diopter adjustment on both oculars
- CCIS Plan achromatic objectives UC PL
- Reversed coded nosepiece for easy identification of objectives
- Focusable Abbe condenser with iris diaphragm and slot
- Illumination according to Köhler with interchangeable illuminator
- Motic LightTracer: LED light intensity control, light memory, sleep mode, mode indicator
- Coaxial coarse and fine focusing system with tension adjustment
- Compact, built-in mechanical stage
- Integrated power supply with sleep mode
- Optional contrast methods: phase contrast, darkfield, single polarization, or LED fluorescence (single-channel)
- Integrated Wi-Fi camera for wireless image transfer via MotiConnect app or Ethernet network
- Live image in Full HD, saved image with 4 MP resolution
- Ethernet and Wi-Fi connectivity
Scope of Supply
- Microscope
- Software: Motic Images Plus 3.0 for Windows, OSX, and Linux
- MotiConnect App for iOS and Android
- Rubber eyecups, blue filter, LED and halogen module
- Immersion oil (5 ml), allen key, dust cover, power cord
Camera Specifications
- Sensor type: CMOS
- Sensor size: 1/3"
- Resolution: 4 MP (2592 x 1520)
- Live resolution: 1280 x 720, 1920 x 1080
Benefits
- High-quality optics for professional imaging
- Flexible viewing with Siedentopf binocular tube and 360º swiveling
- Integrated digital camera and connectivity for easy image sharing and documentation
- Supports multiple contrast methods for versatile applications
Why Choose MOTIC Panthera DL?
The MOTIC Panthera DL Binocular Microscope offers professional-grade imaging, flexible operation, and advanced digital integration for education, research, and diagnostics.
