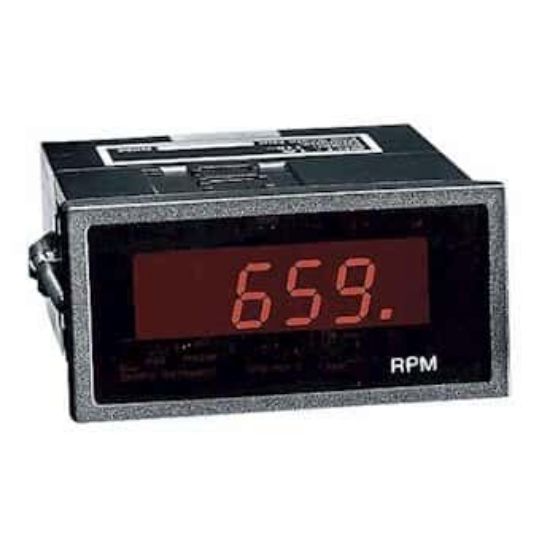

The Monarch Instrument ACT-3X-1-1-4-1-1 is a high-performance panel mount tachometer/totalizer designed for precision monitoring in industrial applications. With multiple input and output options, including 4–20mA and RS232, it delivers accurate speed, count, and process data. Operating on 100–240 VAC, the ACT-3X provides flexibility and reliability for continuous operation in demanding environments.
Product Features
- Panel mount tachometer/totalizer for speed and count monitoring
- Input/output options: 4–20mA and RS232 interface
- Operates on universal 100–240 VAC power supply
- Large, easy-to-read digital display for real-time data
- Configurable alarms and control outputs for process integration
- Durable construction for industrial use
Sensors
- 08212-53: Optical (1 to 250,000 rpm). Remote Optical Sensor with visible Red LED light source and Green LED on-target indicator. Operates up to 3 feet and 45° from reflective target. Stainless steel sensor. Dimensions: 0.625" dia. by 2.9".
- 08212-56: Magnetic Sensor with Amplifier (1 to 100,000 rpm). Recommended for use with 60 tooth gear, 0.25" gap, 0.106" pole piece dia. Sensor Dimensions: 5⁄8 x 18 UNF thread, 2" long.
- 08212-52: Proximity (1 to 60,000 rpm). Probe style inductive sensor for use up to 0.2 inches from a 0.5" metallic target. Can work with one pulse per revolution from bolt head, keyway, etc. Sensor Dimensions: M14x1 thread, 1.26" long.
- 98806-77: Infrared (1 to 999,990 rpm). Use with or without reflective tape at 0.5" sensing gap from target. Senses white-to-black contrasting marks, or beam can be interrupted by solid objects. Dimensions: 2.9" x 0.625" dia.
Benefits
- Accurate RPM measurement and totalization
- High flexibility for multiple tachometer applications
- Easy integration with data acquisition and control systems
- Durable sensors suitable for challenging industrial environments
Why Choose Monarch ACT3X Panel Mount Tachometer/Totalizer?
This tachometer/totalizer combines advanced optical and electronic technology to deliver precise, reliable, and versatile RPM measurement solutions for production monitoring, quality control, and maintenance applications.
