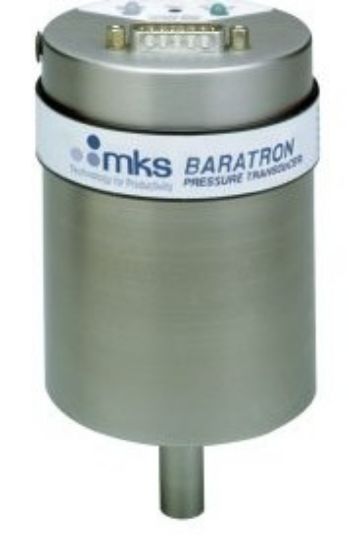

The MKS 625H Baratron Manometer, 10 Torr, 100 °C (part number 625H11TCEEU) is a heated absolute capacitance manometer with process trip-point relays for vacuum and pressure measurement applications. This 625H configuration provides 10 Torr full-scale pressure measurement, 100 °C sensor temperature control, an 8 VCR female fitting, terminal block adaptor, two trip-point relays and a 0 to 10 VDC analogue output.
Key Features
- Brand: MKS
- Manufacturer Number: 625H11TCEEU
- JMG Part Number: 625H11TCEEU
- Product Type: Heated absolute capacitance manometer with trip points
- Model: 625H
- Full Scale Range: 10 Torr
- Sensor Temperature: 100 °C
- Measurement Type: Absolute pressure
- Accuracy: 0.25% of reading
- Resolution: 0.001% of full scale
- Fitting Type: 8 VCR female
- Analogue Output: 0 to 10 VDC into >10 kΩ load
- Analogue Connector: Terminal block adaptor
- Trip Points: 2
- Trip Point Adjustment Range: 0.1% to 100% of full scale or 0.01 to 10 VDC
- Trip Point Level Signal: 0.01 to 10 VDC for each trip point
- Relay Contact Rating: SPDT, 1 A at 30 VDC or 0.5 A at 30 VAC resistive
- Status Indication: Dual-colour LEDs for relay status
- Zero Temperature Coefficient: 0.002% of full scale/°C
- Span Temperature Coefficient: 0.02% of reading/°C
- Operating Temperature Range: 15 to 50 °C
- Internal Volume: 6.3 cc
- Warm-Up Time: 2 hours
- Overpressure Limit: 45 psia / 310 kPa
- Exposed Materials: Inconel
- Power Requirements: ±15 VDC ±5% at 0.60 A maximum
- Compliance: CE
Benefits
- Measures absolute pressure directly, independent of gas composition, for reliable vacuum process monitoring.
- Supports corrosive or dirty gas applications with Inconel surfaces exposed to the process gas.
- Provides repeatable measurement performance with 0.25% of reading accuracy and 0.001% full-scale resolution.
- Enables process control actions through two adjustable trip-point relays with LED status indication.
- Integrates into analogue control systems through a 0 to 10 VDC pressure output.
- Supports cleanroom-compatible installation through its stainless steel enclosure.
Why Choose the MKS 625H Baratron Manometer, 10 Torr, 100 °C (625H11TCEEU)?
The MKS 625H Baratron Manometer, 10 Torr, 100 °C provides heated absolute pressure measurement, relay control capability and corrosion-resistant gas-contact materials for demanding vacuum process environments. John Morris Group supplies this MKS manometer for facilities requiring verified product identification, dependable pressure measurement and procurement support.
