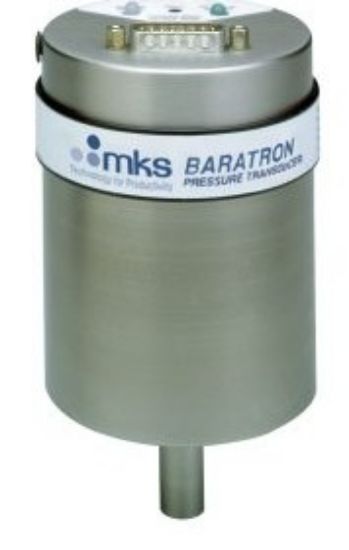

The MKS 625H 1 Torr Heated Manometer, 8 VCR-F, 2 Relays (625H01TCEEU) is a heated absolute capacitance manometer configured for 1 Torr full scale pressure measurement. It features 100 °C sensor temperature control, 0.25% of reading accuracy, 8 VCR female fitting, terminal block adapter, 0 to 10 VDC analogue output and two adjustable process trip point relays.
Key Features
- Brand: MKS
- Model / Part Number: 625H01TCEEU
- Product Type: Heated absolute capacitance manometer with trip points
- Series: 625H
- Measurement Type: Absolute
- Full Scale Range: 1 Torr
- Sensor Temperature: Controlled to 100 °C
- Accuracy: 0.25% of reading
- Resolution: 0.001% of full scale
- Fitting Type: 8 VCR female
- Electrical Connector: Terminal block adapter
- Analogue Output: 0 to 10 VDC into >10K Ω load
- Trip Points: 2 adjustable process trip point relays
- Exposed Material: Inconel
Benefits
- Supports accurate absolute pressure measurement for vacuum and pressure monitoring applications.
- Maintains controlled 100 °C sensor heating to improve stability and repeatability in demanding processes.
- Provides relay-based process control for functions such as pump cross-over and valve activation.
- Simplifies wiring through a terminal block adapter connection.
- Supports use with corrosive or dirty gases where the process is compatible with Inconel exposed materials.
- Measures total pressure directly, independent of gas composition.
Why Choose the MKS 625H 1 Torr Heated Manometer, 8 VCR-F, 2 Relays (625H01TCEEU)?
The MKS 625H01TCEEU combines 1 Torr full scale measurement, 100 °C heated operation, 8 VCR female connection, 0 to 10 VDC output, terminal block wiring and two trip point relays in a cleanroom-compatible stainless steel package. John Morris Group supplies this MKS heated capacitance manometer for users needing verified pressure range, fitting, connector, output and relay specifications.
