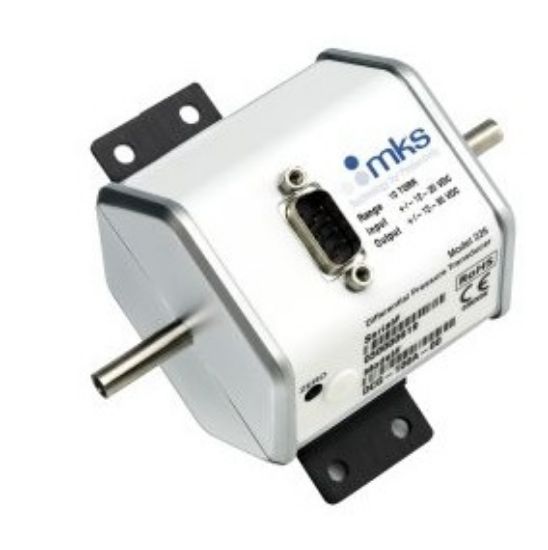

The MKS 226B Differential Pressure Transmitter, 1000 Torr (226B13TCDCDFB4T1) is a Baratron differential capacitance manometer for accurate differential pressure measurement in industrial, electronics manufacturing and analytical equipment applications. This 1000 Torr model features 4 VCR female measurement and reference side fittings, 4 to 20 mA analogue output, bidirectional calibration, a 5-pin terminal block adapter and a standard mounting bracket.
Key Features
- Brand: MKS
- Model: 226B
- Manufacturer Part Number: 226B13TCDCDFB4T1
- Product Type: Baratron differential capacitance manometer / pressure transmitter
- Measurement Type: Differential pressure
- Full Scale Range: 1000 Torr
- Analogue Output: 4 to 20 mA
- Calibration: Bidirectional
- Accuracy: 0.50% of full scale
- Resolution: 0.01% of full scale
- Electrical Connector: 5-pin terminal block adapter
- Measurement Side Fitting: 4 VCR female
- Reference Side Fitting: 4 VCR female
- Mounting Bracket: Standard
- Trip Points: 1
- Power Requirements: 24 to 32 VDC
- Zero Temperature Coefficient: 0.1% full scale/°C for standard accuracy specification
- Span Temperature Coefficient: 0.04% of reading/°C
- Sensor Internal Volume: Measurement side 1.4 cm³, reference side 9.0 cm³
- Operating Temperature Range: 0 to 50 °C
- Maximum Overpressure: Measurement side 120% of full scale or 20 psi (140 kPa), whichever is higher; reference side 120% of full scale
- Maximum Line Pressure: 40 psig (275 kPa)
- Exposed Materials: Measurement side Inconel; reference side Inconel, ceramic, palladium, stainless steel and glass
- Compliance: CE and SEMI S2-0706
Benefits
- Provides differential pressure measurement for vacuum, industrial and process control applications.
- Capacitance manometer technology supports stable pressure measurement independent of gas composition.
- 4 to 20 mA analogue output supports integration into compatible industrial control and monitoring systems.
- Bidirectional calibration supports applications where differential pressure may be measured in either direction.
- Rugged industrial-grade design supports use in environments with high RF and electromagnetic interference.
- 4 VCR female measurement and reference fittings support compatible high-integrity process connections.
Why Choose the MKS 226B Differential Pressure Transmitter, 1000 Torr (226B13TCDCDFB4T1)?
The MKS 226B Differential Pressure Transmitter, 1000 Torr (226B13TCDCDFB4T1) provides verified differential Baratron performance with 1000 Torr range, 4 to 20 mA output, bidirectional calibration, 4 VCR female fittings and terminal block connection. John Morris Group supplies this MKS pressure transmitter for laboratories and process environments requiring reliable differential pressure measurement equipment backed by specialist scientific equipment support.
