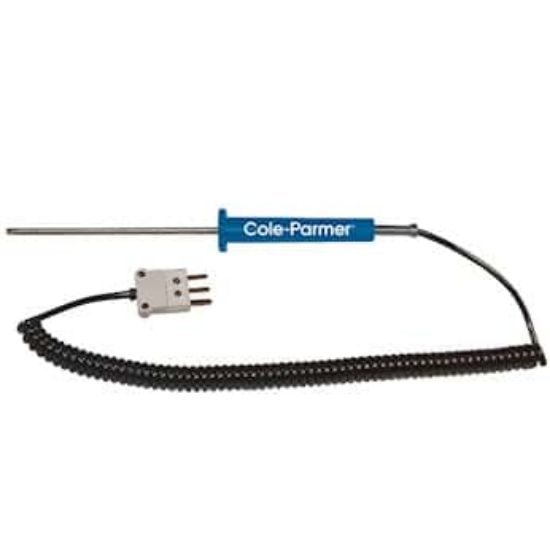

Cole-Parmer Digi-Sense Compact General-Purpose RTD Probe, 100 Ohm, ANSI 3-Blade Connector, 4.5" Length with 5 ft Coil Cable, offers the same accuracy and benefits of a standard RTD probe in a compact, economical design. Ideal for precise temperature measurement in various applications.
Product Features
- Time constant: 3 seconds or greater
- Custom designs or modifications available upon request
- Maximum error: ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F
- Alpha coefficient: 0.003850 Ω/Ω/°C (DIN IEC 751)
- Resistance at ice point (0°C): 100 Ω
- Note: Time constant is the time required to reach 63.2% of the new reading. To reach 99% of the new reading, multiply the time constant by five.
- Note: Temperature range applies to probe tip only. Handle material limits vary: ABS rated to 220°F (104°C), PVC rated to 200°F (93°C), Stainless Steel rated to 450°F (232°C), Mini Connectors rated to 392°F (200°C).
- Compact 4.5" probe length with ANSI 3-blade connector for versatile applications
Benefits
- Accurate general-purpose temperature measurements
- Durable design suitable for various industrial environments
- Flexible 5 ft coil cable allows easy positioning and installation
Why Choose Cole-Parmer Digi-Sense Compact General-Purpose RTD Probe 100 Ohm ANSI 3-Blade 4.5" L 5 ft Coil?
This RTD probe provides reliable, precise temperature measurements with a compact design and flexible installation, ideal for laboratory and industrial applications.
