TTR 96 N C, DN16 KF, 2SP_1671079

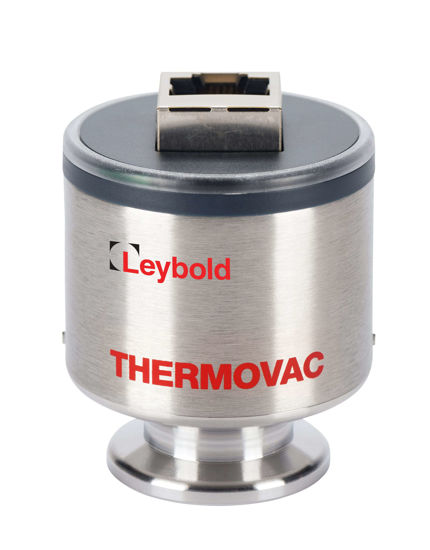

Representative image only

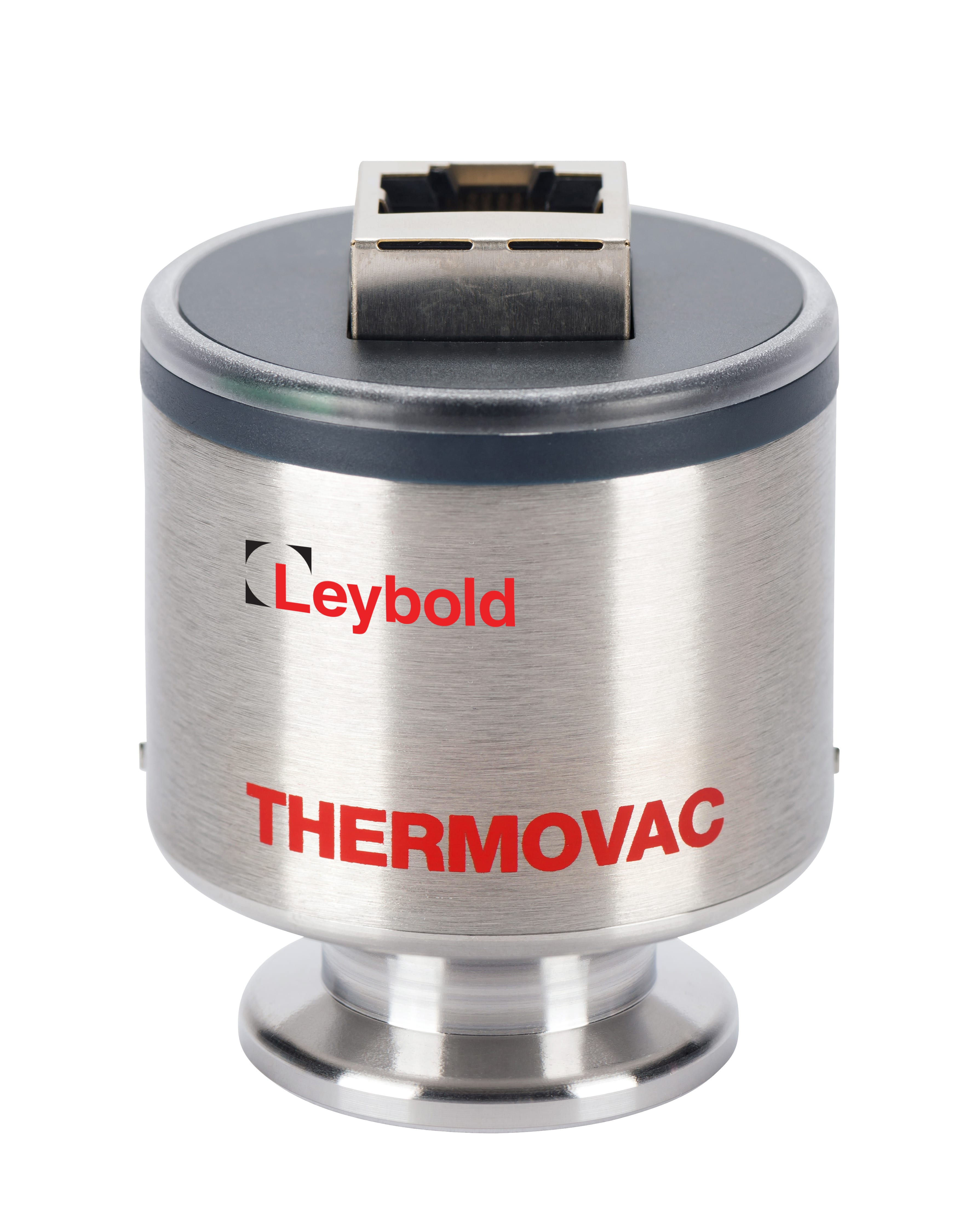

TTR 96 N C, DN16 KF, 2SP

2 switching thresholds-
Connecting cableType A, Type: A
Connecting flangeDN 16 KF
Connection flangeDN 16 KF
Pressure Range5 x 10^-5 mbar - 1000 mbar
100_18_02_Product_Overview_2019_EN.pdf
Product overview
Declaration of contamination
Product brochure
CAD_230045V02-STP.zip
Product catalog
CP_060_Vacuum_Measuring_Controlling_EN.pdf
FVT_Fundamentals_of_Vacuum_Technology_EN58774555441f3.pdf
HS1_Leybold_EN.pdf
HS2_Leybold_EN.pdf
TD_230045V02_EN57d7075907ef3.pdf
Overview

Vacuum measuring

controlling

Today, the total range of vacuum pressure accessible to measurement extends from atmospheric pressure (about 1000 mbar (750 Torr)) down to 10-12 mbar/ 0.75•10-12 Torr, i.e. it extends over 15 powers of ten. The instruments used for measuring the pressure within this wide range are called vacuum gauges. For physical reasons it is not possible to create a single vacuum sensor through which it might be possible to perform quantitative measurements within the entire pressure range. Therefore, a variety of different vacuum gauges are available, each with their own characteristic measurement range which commonly extends over several powers of ten.

Active Sensorss

The Active Sensorss (CERAVAC, THERMOVAC, PENNINGVAC and IONIVAC) are made for direct integration into the vacuum system control. Display and operation units are optional. The passive sensor (PIEZOVAC) is delivered completely including display and operation unit.

THERMOVAC TTR

Transmitter

THERMOVAC transmitters TTR are Active Sensorss (pressure to voltage converters) using thermal conductivity after the very robust MEMS Pirani technology together with a PIEZO diaphragm (TTR101). Depending on the field of application, a selection between different sensors in the pressure measure range between 10-5 and 1500 mbar mbar is possible. The THERMOVAC transmitter are benchmark concerning measurement uncertainty and resilient to vibration and shock venting.

THERMOVAC TTR 96 N - 2SP
