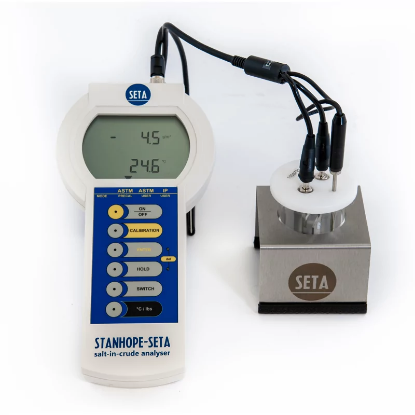

The Analyser is a robust and portable instrument for determining the chloride (salt) content of crude oils in full conformity to ASTM D3230, IP 265 and equivalent test methods. The Seta Salt-in-Crude Analyser is pre-calibrated and automatically displays salt concentration measurements in g/m3 or lbs/1000bbl (pounds per thousand barrels), this avoids the need to mix salt calibration standards and makes testing a simple and fast procedure.
Seta Salt-in-Crude Analyser has 3 test modes:
- ASTM/PRECAL - pre-calibrated for use in conformity to ASTM D3230
- ASTM USER- allows user calibration of ASTM values (ie: display values can be verified and/or recalibrated by the user against salt solutions of known conductivity)
- IP USER - allows user calibration according to IP 265 values
- Salt concentration values displayed automatically
- No need for mixing of salt standards
- Pre calibrated for immediate use for ASTM D3230
- User calibration modes allow verification using user standards
- Typical test time of less than 30 seconds
- Moisture proof membrane touch screen with large keys
- Supplied with beaker and sensor support stands
- Battery or mains power supply

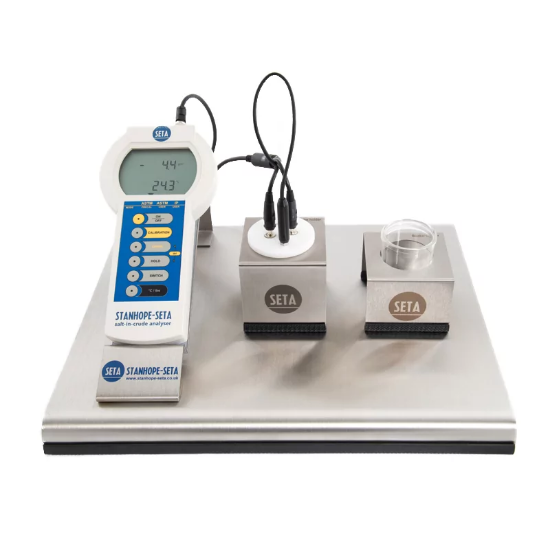

- Optional Bench top Stand

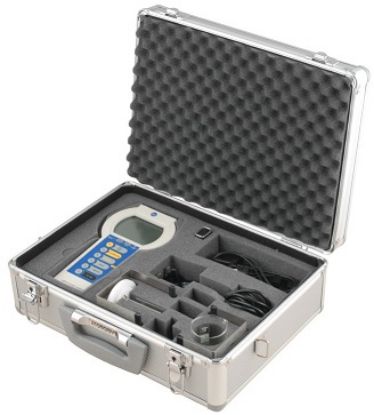

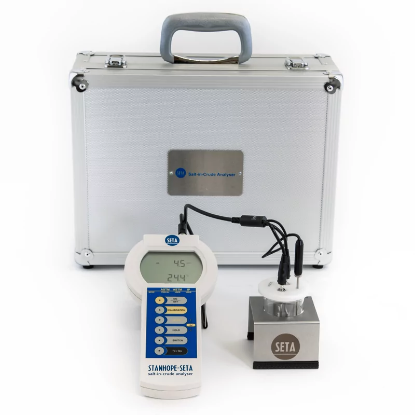

SUPPLIED WITH: an interchangeable plug-in sensor assembly, beaker& sensor support stands, mains voltage transformer, carry case, mains adaptor, software, RS232 cable & instruction manual.
