Premium operating panel
- Digital speed display: shows the displacement speed
- Digital repeat function for durability tests
-
Control of the test bench using SAUTER AFH PC software
-
Solid and flexible mounting options for brackets for test objects such as Universal force measuring clamps, pressure plates for pressure and fracture tests, bending devices, etc.
- Motorised test stand for tension an compression tests
- NEW: Step motor for greatest ease of use :
- for constant speed from the smallest to the maximum load
- allows testing at minimum speed and full load
- for higher positioning accuracy. Precise starting and stopping, without run-on, even at high speeds
- precise adjustment of the process speed using the information shown on the display
- Maximum travel ensured by electronic end switch
- Large working area through long guide columns as standard, which allows a wide range of fixing options
- SAUTER LA length measuring device as standard, to read the measurement range with a readout of 0,01 mm
- Particularly flexible installation options for the most varied force-measuring devices, such as, for example SAUTER FC, SAUTER FH-M, SAUTER FA, KERN FK, SAUTER FL:
- - Direct installation of measuring devices with internal measuring cell up to a measuring range of 500 N (only with TVS 5000N240 and TVS 10KN100)
- -[/] Direct installation of the external measuring cell with a measuring range from 1,000 N on the cross beam[list2]- Mount for force-measuring devices from the SAUTER FH range with external measuring cell

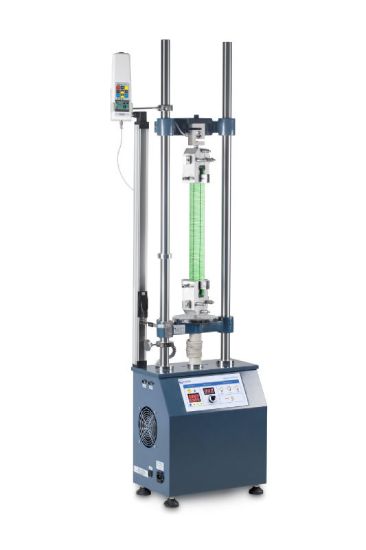

- The large figure shows the TVS test bench with: SAUTER FH force-measuring device, SAUTER LD length-measuring device, longer guide columns as well as bracket for force-measuring device and test objects, not supplied with the product
- For force-displacement testing: Please order the optional SAUTER LD length measuring device and software AFH LD as well as the factory fitting of the length measuring device with the product
