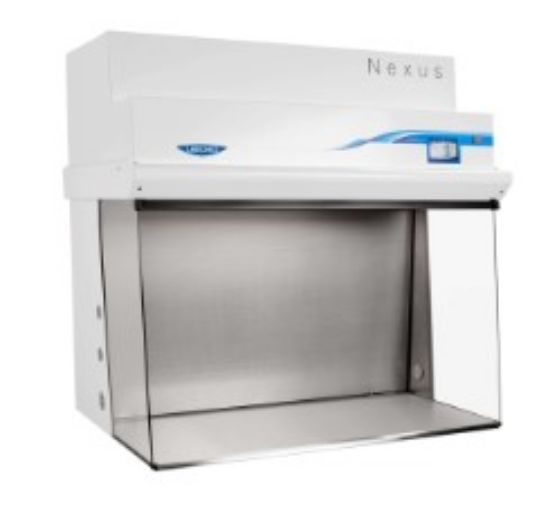

The Labconco 3' Nexus Horizontal Clean Bench offers a 26" deep work area with a durable standard epoxy-coated steel interior and non-shedding PVC work surface, delivering an ISO Class 4 laminar airflow environment to protect critical, non-hazardous samples. Designed for life sciences, pharmaceutical R&D, materials science, and compounding pharmacies, it features an ECM blower powered by Constant Airflow Profile™ (CAP) technology for continuous, precise, and energy-efficient airflow with long-lasting HEPA filters.
Product Features
- Fully scannable 99.99+% supply HEPA filter; 99.999% efficient ULPA filter available
- Electronically Commutated Motor (ECM)
- Unidirectional, laminar airflow
- Constant Airflow Profile™ (CAP) airflow monitoring system
- Nexus Operating System and full color, 5" touchscreen featuring:
- Simplified home screen for easy start-up and shut-down operations
- Eco mode for idling the blower when the system isn't in use
- Full operational, maintenance, and certification logs for detailed record keeping
- Numeric and visual HEPA Filter Life graphic for easy HEPA filter monitoring
- Password security lock (optional activation) requiring user or admin password
- Status line for alarm conditions and alerts at 20%, 10%, and 0% filter life
- Interval/elapsed timer for experiment monitoring
- UV light timer (on models with UV)
- Supports 8 languages
- Glass side panels
- Spill-Stopper design protects HEPA filter from spills
- USB port for data record export
- Remote connectivity via Ethernet port
- Prefilters to extend HEPA filter life
- Bright, glare-free LED lighting
- Tempered safety glass and stainless steel side wall with one utility pass-through port and two service fixture punch-outs
- Electrical Outlet(s) – Ceiling mount, Flat Stainless Steel Cover
- Outlet location: Right side on 3' and 4' models; Right and Left side on 5'-8' models
- 115V GFCI double receptacle, max amperage draw 5A
- 230V single receptacle, max amperage draw 3A
- 30.2" interior height
- Optic White epoxy-coated steel
- Nominal face velocity 0.43 m/s
- 3 m power cord with plug
- Five-year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- Available widths: 3', 4', 5', 6', and 8'
- Interior depths: 21" or 26"
- Standard Interior: Epoxy coated steel interior and non-shedding PVC work surface
- Stainless Steel Interior: 304 stainless steel interior and stainless steel work surface
- 254 nm UV lamp with safety interlocked UV protection screen
- Unassembled epoxy coated steel, non-welded telescoping base stand with leveling feet
Compliance
- ETL listed
- UL 61010.1 Certified
- CAN/CSA 22.2 No. 61010-1 Certified
- CE and UKCA Conformity marking
- ISO Class 4 conditions per ISO 14644-1 and 2
Benefits
- Consistent contamination-free workspace with ISO Class 4 laminar airflow
- Energy-efficient ECM motor with CAP technology maximizes airflow and filter longevity
- Intuitive touchscreen OS simplifies operation, data logging, and maintenance management
- Durable epoxy-coated steel interior with non-shedding work surface offers easy cleaning and chemical resistance
- Remote data export and connectivity support regulatory compliance and audits
- Flexible size and configuration options fit diverse laboratory needs
- Includes UV lamp and base stand for enhanced functionality and stability
Why Choose the Labconco 3' Nexus Horizontal Clean Bench, 26" Deep Work Area, Standard Interior, Laminar ISO Class 4 Airflow, Intelligent OS, 5" Touchscreen, ECM Motor with CAP Technology, Includes UV and Base?
The Labconco Nexus Horizontal Clean Bench delivers precision airflow control using advanced ECM motor technology with CAP for energy efficiency and reliable ISO Class 4 clean conditions. Featuring the intelligent Nexus OS touchscreen for effortless operation and monitoring, plus a robust epoxy-coated steel interior with a non-shedding PVC work surface, this bench is ideal for pharmaceutical, life sciences, and materials research laboratories requiring dependable sample protection and operational ease. The included UV lamp and base stand provide added sterilization and stability benefits.
