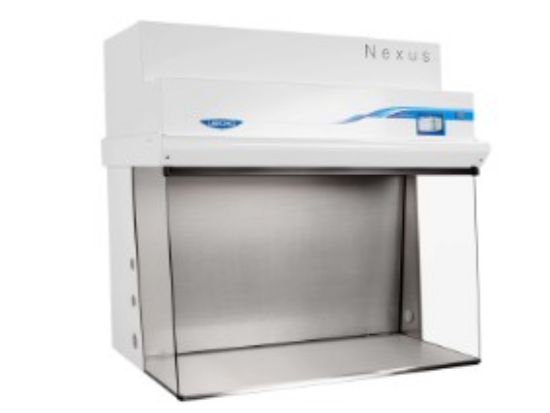

The Labconco 3' Nexus Horizontal Clean Bench features a 26" deep work area with a stainless steel interior, providing a clean, reliable ISO Class 4 laminar airflow environment designed to protect critical, non-hazardous samples. Built for demanding applications in life sciences, pharmaceutical R&D, materials science, and compounding pharmacies, the bench utilizes an ECM blower with Constant Airflow Profile™ (CAP) technology to deliver continuous, precise, and energy-efficient airflow with long-lasting HEPA filters.
Product Features
- Fully scannable 99.99+% supply HEPA filter; 99.999% efficient ULPA filter available
- Electronically Commutated Motor (ECM)
- Unidirectional, laminar airflow
- Constant Airflow Profile™ (CAP) airflow monitoring system
- Nexus Operating System with full-color, 5" touchscreen featuring:
- Simplified home screen for easy startup and shutdown
- Eco mode for blower idling when system is inactive
- Full operational, maintenance, and certification logs for record keeping
- Numeric and visual HEPA Filter Life graphic for easy monitoring
- Optional password security lock requiring user or admin password to operate
- Status line alerts for filter life at 20%, 10%, and 0% with alarms
- Interval/elapsed timer for experiment monitoring
- UV light timer (on models with UV)
- Supports 8 languages
- Glass side panels
- Spill-Stopper design protects HEPA filter from spills
- USB port for data record export
- Remote connectivity via Ethernet port
- Prefilters to help extend HEPA filter life
- Bright, glare-free LED lighting
- Tempered safety glass and stainless steel sidewall with one utility pass-through port and two service fixture punch-outs
- Electrical outlets: Ceiling mount with flat stainless steel cover
- Outlet location: Right side on 3' and 4' models; Right and Left sides on 5'-8' models
- 115V GFCI double receptacle (max amperage draw 5A)
- 230V single receptacle (max amperage draw 3A)
- 30.2" interior height
- Optic White epoxy-coated steel exterior
- Nominal face velocity: 0.43 m/s
- 3-meter power cord with plug
- Five-year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- Available widths: 3', 4', 5', 6', and 8'
- Interior depths: 21" or 26"
- Standard Interior: Epoxy coated steel interior and non-shedding PVC work surface
- Stainless Steel Interior: 304 stainless steel interior and stainless steel work surface
- 254 nm UV lamp with safety interlocked UV protection screen
- Unassembled epoxy-coated steel non-welded telescoping base stand with leveling feet
Compliance
- ETL listed
- UL 61010.1 Certified
- CAN/CSA 22.2 No. 61010-1 Certified
- CE and UKCA Conformity marking
- ISO Class 4 conditions per ISO 14644-1 and 2
Benefits
- Provides a contamination-free workspace with reliable ISO Class 4 laminar airflow
- Energy-efficient ECM motor combined with CAP technology optimizes airflow and filter longevity
- Advanced touchscreen OS simplifies operation, data logging, and maintenance management
- Durable stainless steel interior offers easy cleaning and chemical resistance
- Remote data export and connectivity support compliance and audit readiness
- Flexible size and configuration options to meet diverse laboratory needs
Why Choose the Labconco 3' Nexus Horizontal Clean Bench, 26" Deep Work Area, Stainless Steel Interior, Laminar ISO Class 4 Airflow, Intelligent OS, 5" Touchscreen, ECM Motor with CAP Technology?
The Labconco Nexus Horizontal Clean Bench delivers precise, energy-efficient airflow control with a powerful ECM motor and CAP technology, creating an ISO Class 4 clean environment ideal for protecting sensitive, non-hazardous samples. Its intelligent Nexus OS touchscreen interface offers easy operation and comprehensive monitoring, while the robust stainless steel interior ensures durability and ease of cleaning. Suitable for pharmaceutical, life sciences, and materials research laboratories, this clean bench is a trusted solution for critical sample protection and operational efficiency.
