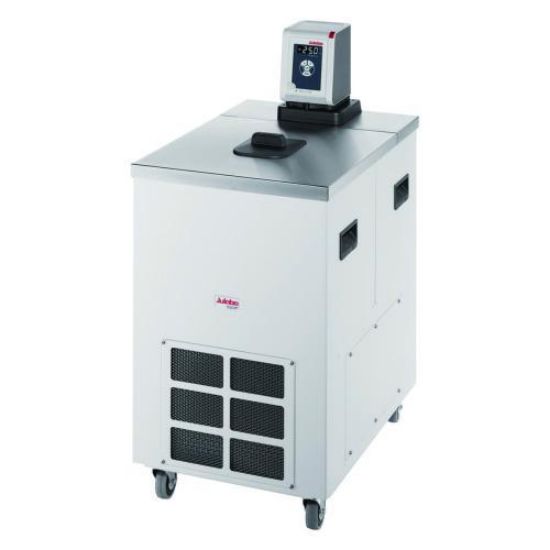

The Julabo CORIO CP-1001F Refrigerated/Heating Circulator provides versatile temperature control for both internal bath and external applications, with an operating range up to 200 °C. Its insulated stainless steel bath tanks and flexible circulation performance ensure precise, reliable, and efficient operation for laboratory and industrial processes.
Product Features
- Suitable for both internal and external applications
- High-quality stainless steel bath vessels including bath lid and drain
- Refrigerating units without side ventilation openings for compact design
- More space in the bath due to space-saving evaporator coils
- External pump connections M16x1 for easy integration
- Bright white display easily visible from a distance
- Low-level warning system for safe operation
- Simple switching between internal and external circulation
- Powerful, continuously variable pump
- Pump capacity adjustable from 8 to 27 l/min
- Very quiet operation with rubber feet for stable placement
- Removable air vent for maintenance
- USB connection and RS232 interface for communication and control
- Class III (FL) safety according to DIN 12876-1
Scope of Supply
- Refrigerated circulator CORIO CP-1001F
- Mains power cable
- Connection box
- Bath cover
- Connecting cable
- Refrigerator unit
- Hose connectors (8 mm and 12 mm)
Specifications
- Setting accuracy: 0.01 °C
- Temperature uniformity: ±0.03 °C
- Pump output: 8 ... 27 l/min
- Pump pressure: 0.1 ... 0.7 bar
- Heat output: 2 kW
- Timer: 0 ... 999 min
- Hose connector inner width: 8/12 mm
- Permissible ambient temperature: 5 ... 40 °C
- Power supply: 230 V / 50 Hz
Benefits
- Precise and uniform temperature control for diverse applications
- Efficient internal and external circulation for process flexibility
- Quiet and safe operation with low-level warning and stable design
- Advanced connectivity with USB and RS232 interfaces
- Durable stainless steel construction for long-term reliability
Why Choose Julabo CORIO CP-1001F?
The Julabo CORIO CP-1001F combines high performance, precision, and flexibility, making it ideal for laboratories and industrial environments that require reliable temperature control for both internal and external applications.
