Thread through the equipment housingto connect the external system to tubing
Manufactured from inert polymers
1/4-28 flat-bottom port
2.9 µL swept volume
Natural PEEK body
Assembly includes SS nut and washer

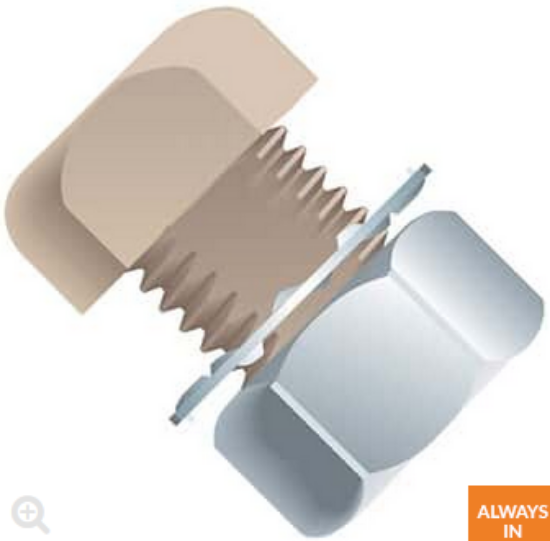

Use bulkhead unions in a variety of low-pressure situations throughout your fluidic system. Each PEEK union has unique 3/8-24 external threads and can be held in place with included stainless steel nuts and lock washers. Requires 3/8" hole to mount. Assemblies include nut and washer.
