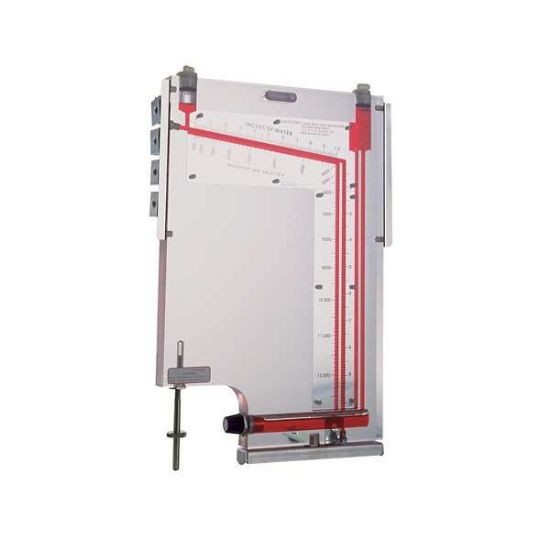

Read the red figures directly in fpm of velocity-from 400 to 10,000 fpm. No conversion tables needed for standard condition. Read the black figures in inches of water column. Air pressure-from 0 to 10" W.C.
Our most popular precision air velocity instrument. This meter is used to balance air conditioning systems, measure pressure drop across filters and test fan and blower discharged and inlet pressures, as well as air velocity in ducts. It offers the convenience of a dual purpose instrument plus high accuracy on easy to read scales. A versatile, all around manometer for the air conditioning and balancing contractor or industrial plant.
Accessories Included
- Stainless steel calibrated pitot tube (18") - graduated both sides in inches to show insertion depth for easy, accurate duct traverse.
- Clean, burr-free static holes.
- Pitot tube suitable for temperatures up to 1500° F
- Rubber tubing with connectors - 2 coils of 3/16" with metal terminal tubes
- Magneclip side mountings - attaches meter instantly to steel duct or surface
- Red gauge oil - spare bottle for occasional refilling. Supply sufficient for several years of normal use.
- Instruction card - easy to read and understand, plastic laminated, easy to clean.
- Dwyer air velocity calculator - slide rule eliminates tedious calculations, easily compensates for temperature, humidity and barometric pressure variations.
- Steel carrying case - professional quality. Welded seams, enamel finish. Hinged top locks with hasps. Foam plastic lined and fitted to protect meter and accessories.
