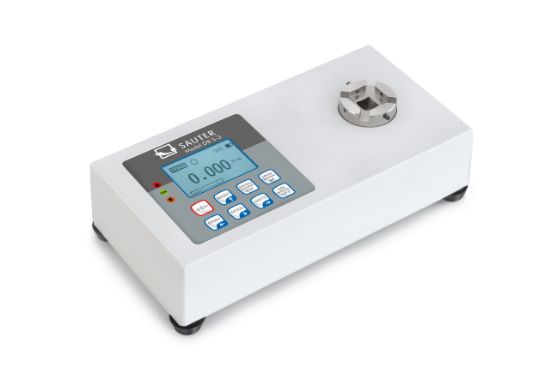

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers
-
Rotary sensor for dynamic testing of electric screwdrivers (for models with [Max] ≤ 50 Nm)
- Measurement precision: +/- 0,5% of [Max]
- Metal housing for durable usage in harsh environmental conditions
- Capacity display: A bar lights up to show how much of the measuring range is still available
- Back-lit LCD graphic display
- num/1] Rubber feet with anti-slip feature (for models with [Max] ≤ 10 Nm)
-
Robust mounting plate for secure fixing (for models with [Max] ≥ 20 Nm)
- USB and RS 232 data interfaces to the PC included
- Scope of supply: rotary sensor, sturdy carry case, mounting plate (for models with [Max] ≥ 20 Nm)
- Internal data memory saves up to 500 measurements. The content of the memory can be transferred to the PC using optional software
- Real time or Peak Hold Mode to observe transcients or capture peaks
- Can be used in both directions of rotation
- Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed. The process is supported by an acoustic and visual signal
- AUTO-OFF function
- Capacity : 10 Nm
- Readability : 0.002 Nm
