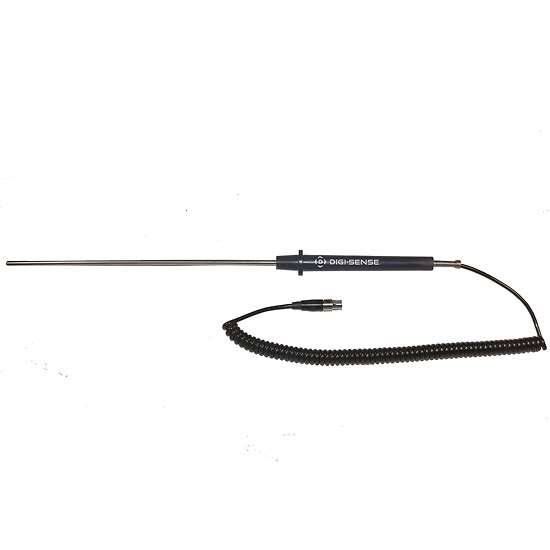

The Cole-Parmer Digi-Sense General Purpose RTD Probe offers precise temperature measurement in a compact and economical design. This model features a 100 Ohm resistance, a 5-ft coil cable, and an 18-inch probe length, ideal for a variety of industrial and laboratory applications.
Product Features
- Designed to provide the accuracy and benefits of an RTD probe in a compact, economical design
- Time constant: 1–3 seconds or greater
- Maximum error for probe assembly is ±1.1°C + 0.12% of reading below 300°F, ±0.35% of reading above 300°F
- Alpha coefficient: 0.003850 Ω/Ω/°C (DIN IEC 751)
- Resistance at ice point (0°C) is 100 Ω
- Custom designs or modifications available upon request
Note: Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading, multiply the time constant by five.
Note: The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle, depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated to 450°F (232°C); Mini Connectors are rated to 392°F (200°C).
Benefits
- Compact and economical design with reliable accuracy
- Fast response with low time constant
- Durable construction for varied industrial use
Why Choose the Cole-Parmer Digi-Sense RTD Probe?
This RTD probe combines accuracy, durability, and ease of use, making it the ideal choice for temperature monitoring across numerous environments and applications.
