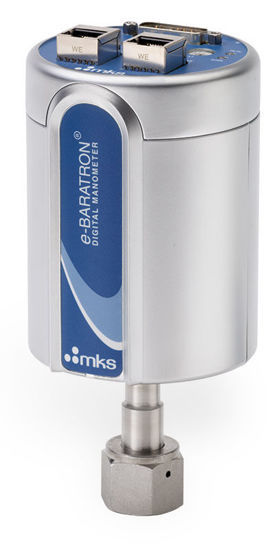

DA02A Digital e-Baratron, Heated EtherCAT, 1 Torr, KF16, Standard Sensor, 0-10VDC Output, 45C Heated, Standard Calibration

JMG No. 1307522 • MPN DA02A01TGAS24C00

MKS Instruments

MKS Instruments

DA02A Digital e-Baratron, Heated EtherCAT, 1 Torr, KF16, Standard Sensor, 0-10VDC Output, 45C Heated, Standard Calibration JMG No. 1307522 MPN DA02A01TGAS24C00
0.0

Call for Price

Overview
The EtherCAT® Baratron® capacitance manometer uses industry-standard EtherCAT digital communications to connect to complex process tools, based on the proven 627C and 628C Ethernet-equipped Baratron products. DA02 Baratron Pin-Outs Pin Assignment 1  Reserved 2  Pressure Signal Output 3  No Connection 4  Reserved 5  Power Common 6  Reserved 7  +24 VDC 8  No Connection 9  Reserved 10 Reserved 11 +24 VDC 12 Pressure Signal Common 13 No Connection 14 Reserved 15 Chassis Ground

More Details

0.0

0 reviews

Add to your favourites
Overview
The EtherCAT® Baratron® capacitance manometer uses industry-standard EtherCAT digital communications to connect to complex process tools, based on the proven 627C and 628C Ethernet-equipped Baratron products. DA02 Baratron Pin-Outs Pin Assignment 1  Reserved 2  Pressure Signal Output 3  No Connection 4  Reserved 5  Power Common 6  Reserved 7  +24 VDC 8  No Connection 9  Reserved 10 Reserved 11 +24 VDC 12 Pressure Signal Common 13 No Connection 14 Reserved 15 Chassis Ground

More Details

DETAILS

The EtherCAT® Baratron® capacitance manometer uses industry-standard EtherCAT digital communications to connect to complex process tools, based on the proven 627C and 628C Ethernet-equipped Baratron products.

DA02 Baratron Pin-Outs

Pin Assignment

1  Reserved

2  Pressure Signal Output

3  No Connection

4  Reserved

5  Power Common

6  Reserved

7  +24 VDC

8  No Connection

9  Reserved

10 Reserved

11 +24 VDC

12 Pressure Signal Common

13 No Connection

14 Reserved

15 Chassis Ground
