Methods : AS 4059, ASTM D6786, ASTM D7647, GB 5930, GJB 420-1987/420-A-1996/420B-2006, GOST 17216, ISO 11171, ISO 11500, ISO 4406, ISO 60970, NAS 1638, SAE 749D, SAE A6D

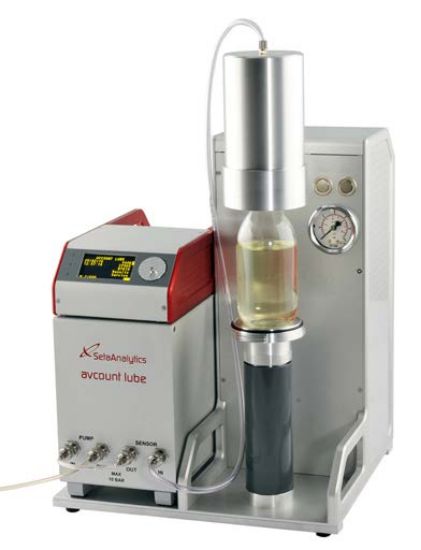

AvCount Lube is a pressurised laser based particle counter used for determining the particle concentration in oils with a viscosity up to 200 mm2/s. It can be used throughout the distribution network and in the laboratory.
- Calibrated to ISO 11171, traceable to NIST SRM 2806b
- Suppled with ASTM D7647, ISO 60970 and ISO 4406 loaded as standard
- FFKM seals compatible with synthetic oils
- Suitable for fluids up to 200mm2/s viscosity
- Customisable methods - up to three can be stored at any time
- Multiple methods can be stored on a PC and uploaded via USB
- Particle count and cleanliness code
- Uses "Straight from the Bottle" samples
- Precise and reliable results
- Ultra compact rugged, steel case suitable for portable use
- 15 fixed measuring channels (calibration in compliance with ISO MTD for measuring in oil)
- 3 minute test time
- Data storage for up to 600 measurements
- Internal Double Pump System
- USB connection for PC connectivity
- Integral Compressor
