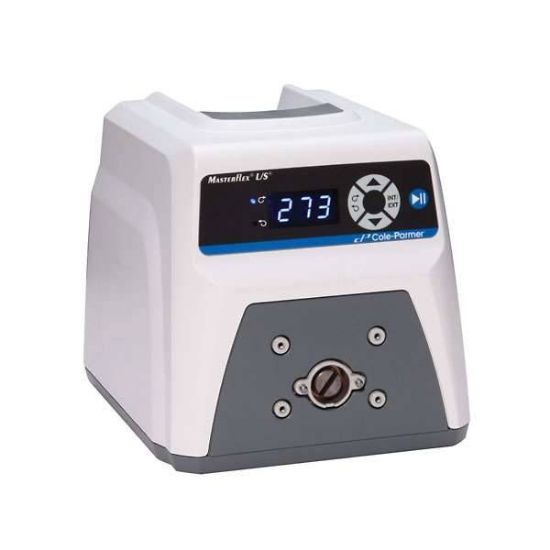

The Avantor Fluid Handling L/S Variable-Speed Digital Drive with Remote I/O delivers precise speed control and a clear digital rpm display, perfect for metering applications. It features a reversible motor and powerful design allowing stacking of 2 or 4 pump heads for increased flow rates and multichannel uses. The drive has a splash-resistant ABS housing rated IP33 for durability in laboratory settings.
Product Features
- Speed range of 1 to 100 rpm with ±0.25% speed control accuracy
- Flow rates from 0.06 to 3400 mL/min depending on tubing size and rpm
- Three-digit LED rpm display for easy speed confirmation
- Reversible motor for tubing purge and bidirectional pumping
- LED indicators display motor direction
- Supports stacking of 2 or 4 pump heads for higher flow and multichannel applications
- Separate speed and power (on/off) controls to maintain speed while toggling power
- Stackable, splash-resistant ABS housing; IP33 rated
- Remote control via DB9 female connector supporting speed input (4–20 mA or 0–10 VDC), pump direction, and start/stop
- Membrane keypad for direct control of speed, direction, and start/stop
What’s Included
- 6-ft (1.8-m) line cord with IEC 320/CEE22 socket
- Country-specific plug/cord set shipped based on order destination (please specify ultimate destination when ordering)
Benefits
- Accurate analog speed control for consistent flow metering
- Flexible local and remote operation options
- Robust design suitable for demanding laboratory and process environments
- Supports advanced applications with pump head stacking
Why Choose the Avantor Fluid Handling L/S Variable-Speed Digital Drive with Remote I/O, 1 to 100 rpm, 90 to 260 VAC?
This drive combines precision, remote connectivity, and durable design, making it ideal for precise fluid handling in automated and manual metering applications.
