4568-600mL, 4568-T-SS-M-(SS)-230-VS.12-3000-4848-ASME

 4568-600mL-T-SS-M(SS)-230-VS.12-3000-4848-ASME

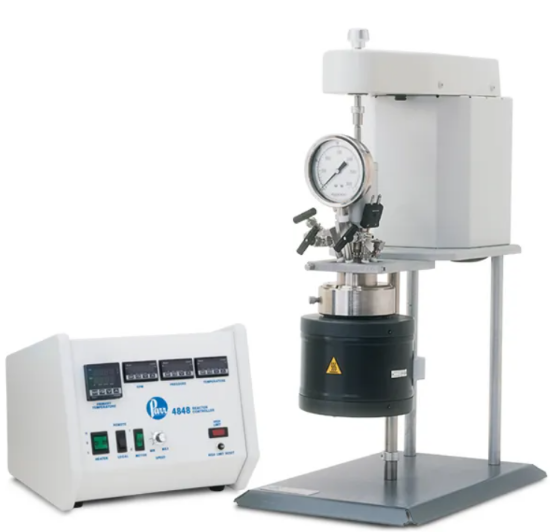

Series 4560 Bench Top Reactor System with the following specifications:

1. Fixed head vessel mounted in a bench top stand
2. Vessel MAWP Rating: 3000 psi at up to 350 °C
3. Head, cylinder, and internal wetted parts (in direct contact with process liquid) constructed of T316 Stainless Steel
4. Vapor-containing external valves and fittings constructed of stainless steel
5. Magnetic drive constructed of T316 SS
6. PTFE flat gasket and bolted split-ring closure
7. Cylinder, 600mL volume with 2.5” ID and 8” inside depth
8. Vessel ASME certified
9. Heater Assembly, 230V
10. Variable speed motor, 1/8 hp
11. 4848 Reactor Controller, 230V, with the following specifications: 1) PID temperature control with ramp and soak programming
12. Manual speed adjustment knob, 0-600 RPM
13. Head to include:

• Magnetic Drive, 16 in-lb, with turbine-type impeller
• Pressure Gage, 0-3000 psi, stainless steel
• Safety rupture disc, Alloy 600, rated to 3000 psi at room temperature
• Gas release valve
• Double valve assembly with liquid sampling and gas inlet valves over dip tube
• Type J thermocoupl
