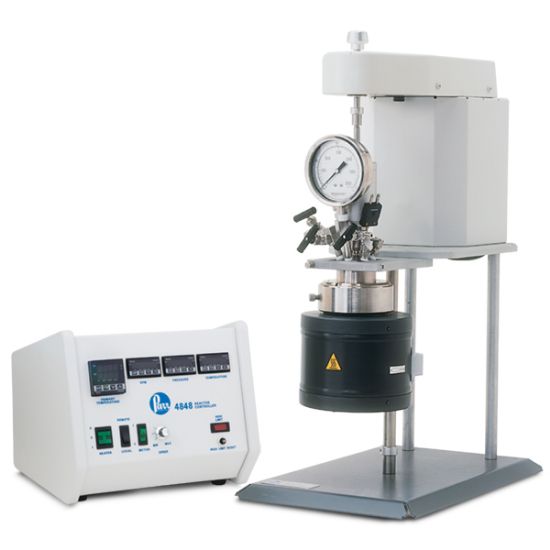

4560 series mini reactor with the following specifications.
4561-300mL, 4561-T-SS-M-(SS)-230-VS.12-3000-4848-ASME
A) Stainless steel vessel of total Volume 300 ml
B) Standard Head fittings include :
1) Pressure gage 0-3000
2) Gas inlet valve
3) Thermocouple with thermowell
4) Rupture disc assembly with rupture disc
5) liquid sampling valve
6) Gas release valve
7) Dip tube
C) Maximum working pressure 3000 psi @ 350 C
D) PTFE flat gasket stable up to 350 C
E) Magnetic drive , T31622, 16 in-lb
F) VS.12 Variable speed motor, 1/8 hp, 0- 600 rom pulley
G) 4848 PID temperature controller with ramp and soak (Without PDM/MCM modules)
H) Heater to suit 300 ml vessel
I) ASME certification (American Society of Mechanical Engineers)
J) 230 Volt AC electrical supply
