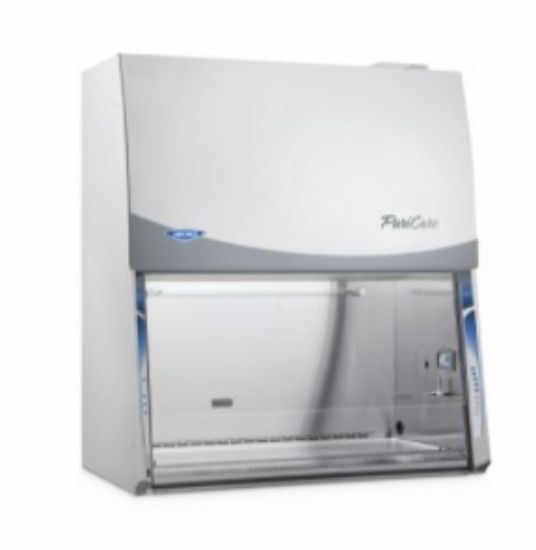

PuriCare Procedure Stations provide personnel, animal and environmental protection.
They are specialized Class II, Type A2 biological safety cabinets that meet or exceed the product and personnel protection requirements of NSF 49.
These Stations are designed for conducting small animal research activities including cage changing, weighing, anesthesia delivery and surgical procedures.
Compliance
- NSF Listed, Standard 49
- ETL listed
- CE conformity marking
Features
- Nominal inflow velocity of 105 feet per minute (fpm) with 10" sash opening; 85 fpm with 12" sash opening.
- Nominal downflow velocity of 55 fpm
- Approximately 70% air recirculation
- Patent-pending design
- Interior-mounted, line-of-sight LCD information center with "Filter Life Remaining" bar graph, status line for alarm conditions and alerts to warn when filter life diminishes to 20%, 10% and 0%
- Filter monitoring system and electronically commutated motor (ECM) that automatically adjusts as filters load
- Smart-Start™ System
- Night-Smart™ System
- Built-in interval or elapsed timer for experiment monitoring, fluorescent light or UV light control (on models with UV light)
- Touchpad control on right-hand side post for manual activation of blower, light, timer, audible alarm mute and menu selection
- Radiused type 304 stainless steel interior and removable, seamless, dished work surface with lift out knobs
- Powder-coated steel exterior
- Towel catch with sponge-type prefilter located under work surface
- Contain-Air™ Negative Pressure Channel
- Class 5 conditions per ISO 14644-1 and 2 (formerly Class 100)
- Supply and exhaust 99.99% efficient H14 HEPA filters. (99.999% efficient U15 ULPA filters available.)
- Trace odor carbon postfilter accessory available
- Two electrical duplex receptacles (single outlets on 230 volt models), located one on each side, with ground fault interruption (115 volt models) and stainless steel splash covers
- Fully-closing, clear 1/4" tempered safety glass sash with two sash handles; counterbalanced, anti-racking mechanism; and 10° slope
- 21.7" sash opening and 27.5" viewing height
- Curved stainless steel inlet grille with Reserve-Air™ Secondary Airflow Slots
- Bright, 90-100 footcandle, glare-free fluorescent lighting located outside the contaminated work area
- Intrinsically-safe negative pressure design
- Electronic security lock (optional activation) that requires code to operate the cabinet
- ETL listed
- Full five year warranty on parts and service
- Available in 4' and 6' widths
Options
- 254 UV lamp with timer
- Chrome-plated forged brass service fixture(s) with ball valve and quarter turn handle, factory installed 8.5" above work surface
Required Accessories
- Supporting base
Optional Accessories
- Replacement Prefilters
- Activated Carbon Filters to remove odors
- Canopy Connection Kits to allow the PuriCare Station to be thimble-ducted to the outside
- Air-Tight Damper
- Remote Blowers
- Service Fixture Kit
- Ultraviolet Lamp Kits
- General Accessories
- SoLo Hydraulic Lift Base Stands
