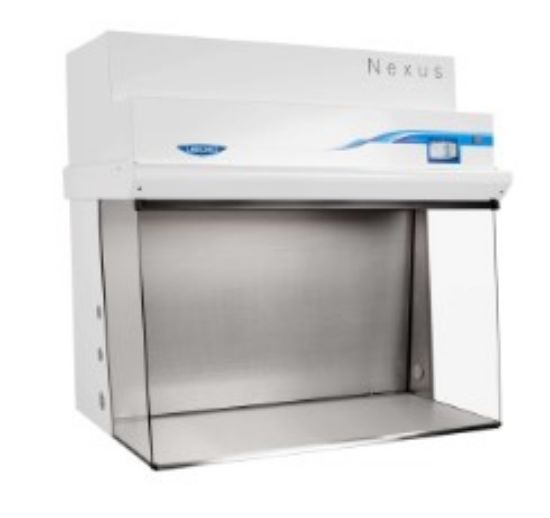

Nexus Horizontal Clean Benches are designed to protect non-hazardous applications, and meet the rigorous demands of life sciences, materials science applications, pharmaceutical R&D and compounding pharmacies. The Nexus also provides an ISO Class 4 clean airflow environment for protection of critical, non-hazardous samples.
Laminar airflow is driven by an ECM blower powered with Constant Airflow Profile (CAP™ï¸) technology for continuous, precise airflow that is energy efficient with long-lasting HEPA filters.
The sleek Nexus Horizontal Clean Bench design includes tempered safety glass and a stainless-steel interior option for effortless cleaning and durability in critical environments.
Powered by the Nexus OS™, an intuitive touchscreen interface, operational logs maintenance records are stored onboard and can be accessed remotely for worry-free compliance management.
Features
- Fully scannable 99.99+% supply HEPA filter, 99.999% efficient ULPA filter available
- Electronically Commutated Motor (ECM)
- Unidirectional, laminar airflow
- Constant Airflow Profile™ (CAP) airflow monitoring system
- Nexus Operating System and full color, 5" touchscreen featuring:
- Simplified home screen for easy start up and shut down operations
- Eco mode for idling the blower when the system isn't in use
- Full operational, maintenance and certification logs for detailed record keeping
- Numeric and visual HEPA Filter Life graphic for easy HEPA filter monitoring
- Password security lock (optional activation) that requires user or admin password to operate the cabinet
- Status line for alarm conditions and alerts to warn when filter life diminishes to 20% and 10% before alarming at 0%
- Interval/elapsed timer for experiment monitoring
- UV light timer (on models with UV)
- 8 Languages
- Glass side panels
- Spill-Stopper design protects HEPA filter from spills
- USB port for data record export
- Remote connectivity via Ethernet port
- Prefilters to help extend HEPA filter life
- Bright, glare-free LED lighting
- Tempered safety glass and stainless steel side wall with one utility pass-through port and two service fixture punch-outs
- Electrical Outlet(s)-Ceiling mount, Flat Stainless Steel Cover
- R side on 3' and 4' Models, R and L side on 5'-8' Models
- 115V GFCI, double receptacle, maximum amperage draw 5A.
- 230V, single receptacle, maximum amperage draw 3A.
- 30.2" interior height
- Optic White epoxy-coated steel
- Nominal face velocity 0.43 m/s
- 3 m power cord with plug
- Five year warranty
Required Accessories (Not Included)
- Supporting base if non-welded stand option is not selected
Options
- 3', 4', 5', 6' and 6' widths
- 21" or 26" interior depth
- Standard Interior: Epoxy coated steel interior and non-shedding PVC work surface
- Stainless Steel Interior: 304 stainless steel interior and stainless steel work surface
- 254 nm UV lamp with safety interlocked UV protection screen
- Unassembled, epoxy coated steel, non-welded telescoping base stand with leveling feet
Compliance
- ETL listed
- UL 61010.1
- CAN/CSA 22.2 No. 61010-1
- CE and UKCA Conformity marking
- ISO Class 4 conditions per ISO 14644-1 and 2
