Seta AvCountHV : Laboratory Particle Counter for High Viscosity Lubricants and Hydraulic Oils

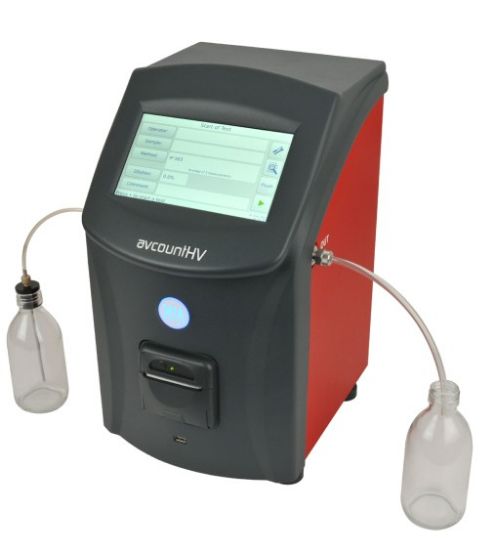

The AvCountHV is a compact bench-top automatic particle counter, used to measure the size and distribution of particles and water droplets in lubricants and hydraulic oils with viscosities up to 1500 mm2/s at 20 °C.
Featuring a simple user interface with touch screen display, the fully-automated test means extensive operator training is not required before using the instrument. The simplicity of test set up and automation, gives operators the time to work on something else, helping to reduce labour costs.
The AvCountHV's enhanced functionality includes a dilution protocol for testing of high viscosity samples, real-time display of test progress, 4 embedded test methods, user and sample identification and password protected levels.
Statistical Quality Control software allows analysis of results in accordance with ASTM D6299.
Supplied with: sample bottles, sample probe, waste pipe, universal voltage power supply, calibration certificate and instruction manual.
Methods: ASTM D6786; ASTM D7647; GJB 420; GOST 17216; ISO 4406; ISO 11171; ISO 60970; NAS 1638; NAVAIR 01-1A-17; SAE AS 4059
Features :
- High viscosity, up to 1500 mm2 /s at 20 °C
- ISO 11171 calibration
- Cumulative counts/ml
- ISO 4406 cleanliness codes
- Colour touch screen
- Dilution ratio calculation
- Real time display of test progress
- User programmable
- LIMS, network and VNC connectivity
- Programmable alarm limits
- User and sample identification
- Embedded test methods
- Integral printer
- 500,000 test memory
- Size (HxWxD) / Weight 370 x 230 x 270 mm / 6 kg
