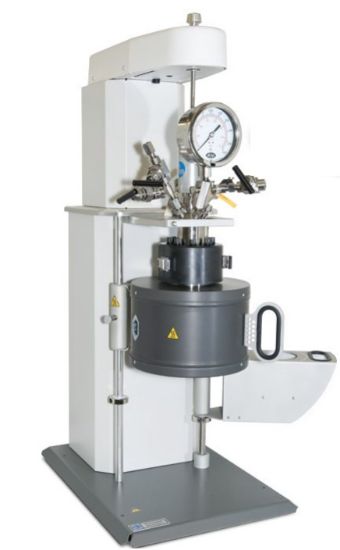

A) 500mL Fixed head reactor bench top style made of Inconel 600
B) Vessel MAWP Rating: 5000 psi at up to 500°C.
C) Head, cylinder, magnetic drive, and internal wetted parts (in direct contact with
process liquid) constructed of Inconel 600
D) Vapor-containing external valves and fittings constructed of stainless steel.
E) Flexible Graphite Flat Gasket stable up to 500C
F) Head to include:
a. Magnetic Drive made of Inconel 600, 16 in-lb. with stirrer shaft
b. Pressure gauge 0-5000 psi
c. Gas release valve
d. Double valve assembly with inlet valve and sampling valve over dip tube.
e. Safety rupture disc
f. Thermocouple, Type J
g. Cooling coil
H) Bench top stand with mantle heater, 230V
I) Variable speed motor, 1/8 hp
J) 4848 Reactor Controller with the following specifications:
a. PID temperature control with ramp and soak programming
b. Manual speed adjustment knob, 0-600 rpm
d. 230V Electrical
K) ASME Certification
