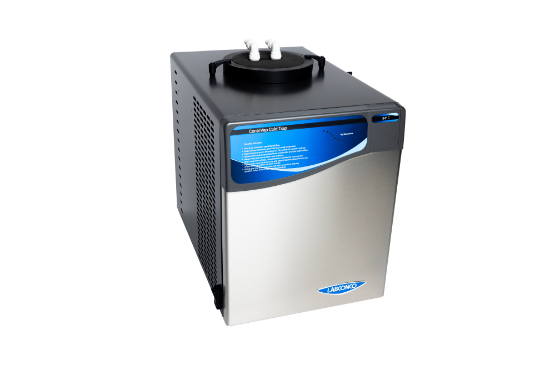

CentriVap Cold Traps are critical components designed to collect evaporated liquid from CentriVap Vacuum Concentrators. Condensing and trapping volatile solvents protects the vacuum pump and the laboratory environment from the harmful effects of vapors, fumes and corrosives while also ensuring the solvents can be easily collected for analysis or disposal.
The Cold Trap is available as an integral component within configured CentriVap concentration systems or separately for a wide range of laboratory applications such as freeze drying and desiccation.
- Illuminated Temperature Graph with Endpoint Indication (Operating temperature of -40 °C)
- HCFC-Free Refrigerant System
- 4-liter, Stainless Steel Collector
- Acrylic (-50 °C only) or Stainless Steel Lid with 2 Quick-Disconnect fittings for connection to a CentriVap Concentrator
- Stainless Steel Drain Port (with corrosion-resistant, nylon valve)
- Eco-cool natural refrigerant available on select models
- -50 °C models feature a 1/3 hp Compressor (-50 °C in less than 30 min.)
- -84 °C models feature two 1/3 hp Compressors (-84°C in less than 40 min.)
- -105 °C models feature two 1/3 hp Compressors (-105°C in less than 40 min.)
